ADC

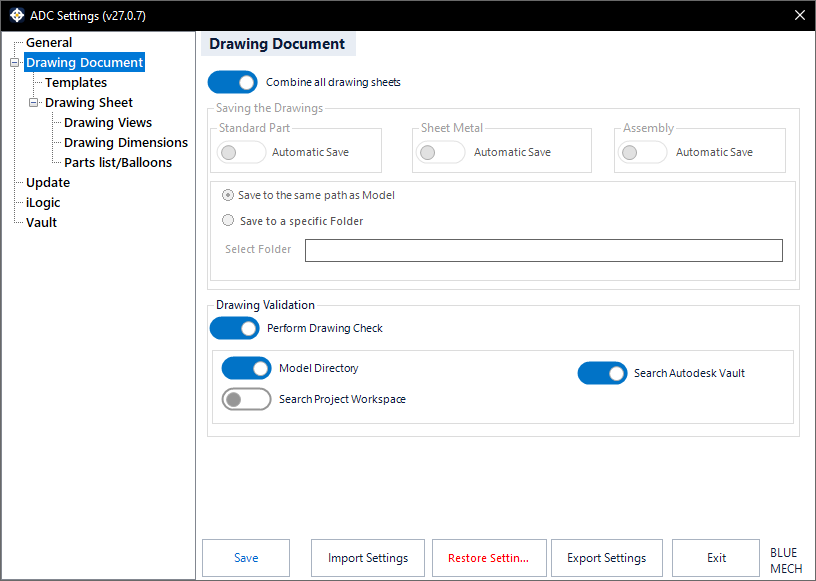

Combine every sheet into one drawing, control where drawings are saved, and check for an existing drawing before creating a new one.

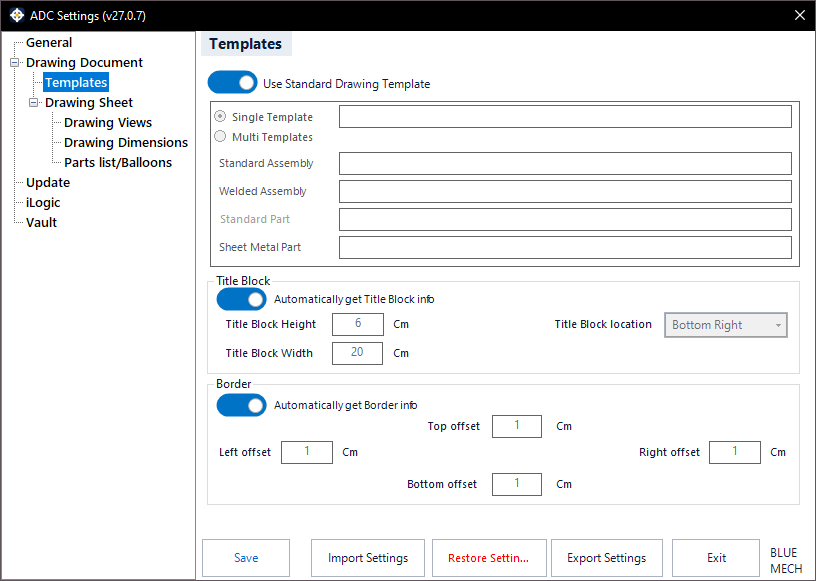

Use one template, or a different template per model type, with automatic title-block and border detection.

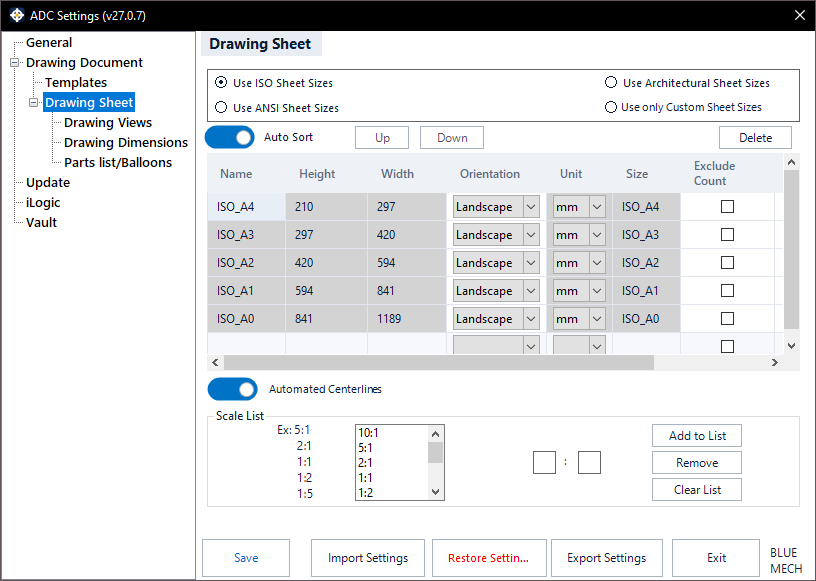

Pick the sheet-size standard and the scales ADC may use, and add centerlines automatically.

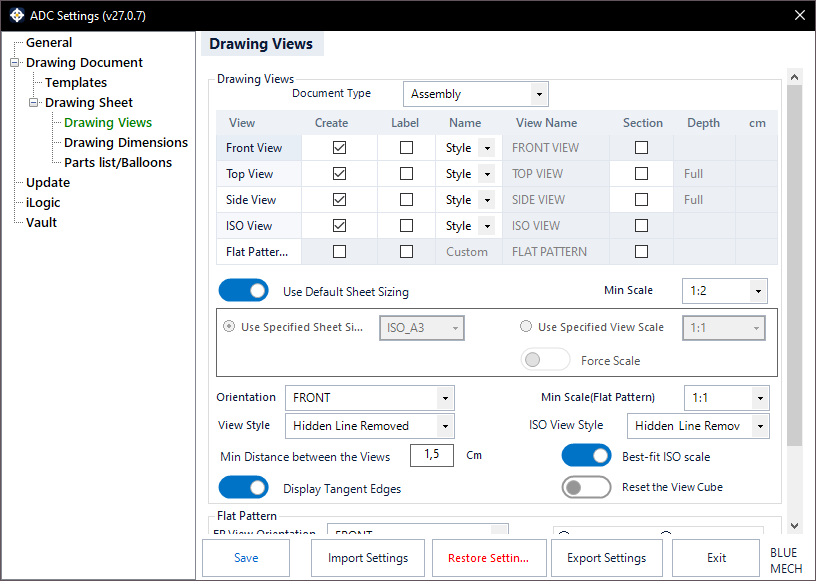

Choose which views to create — separately for each document type — with their style, scale and section depth.

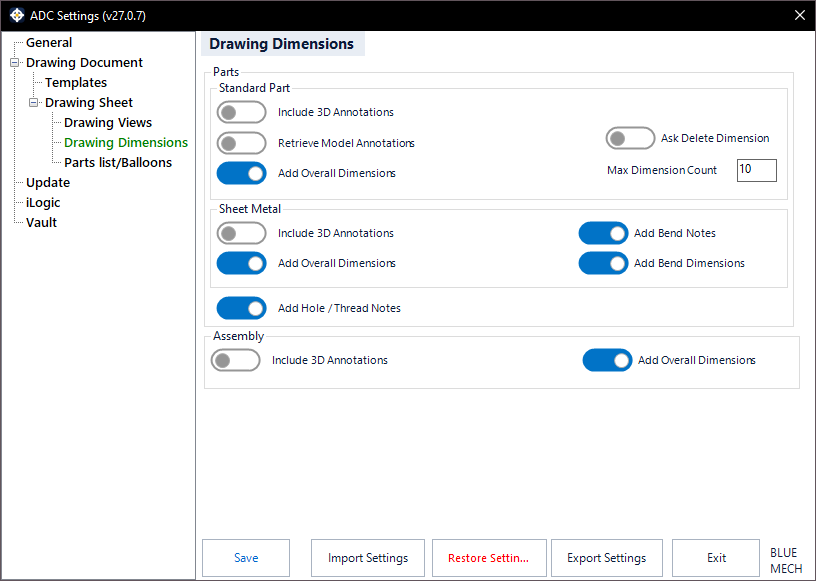

Retrieve model dimensions, add overall and bend dimensions, and place hole and thread notes automatically.

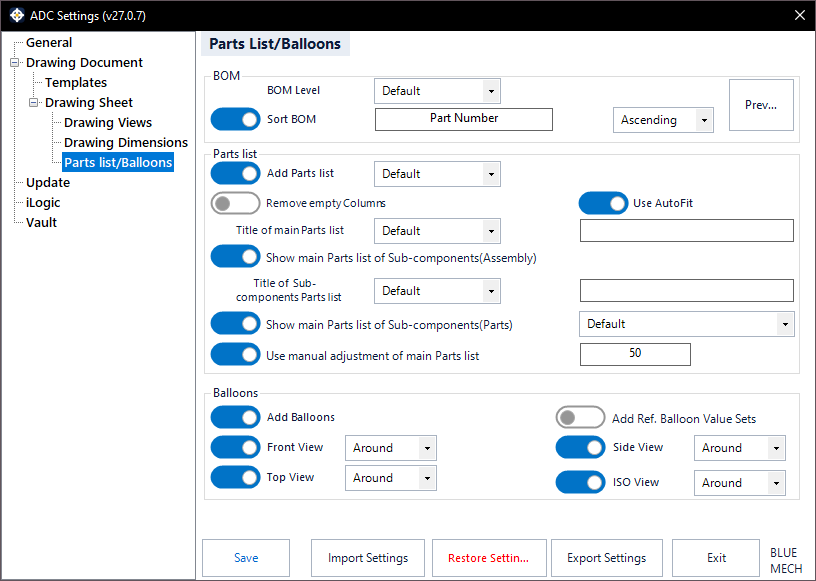

Add a parts list and balloons automatically, with BOM sorting and per-view balloon placement.

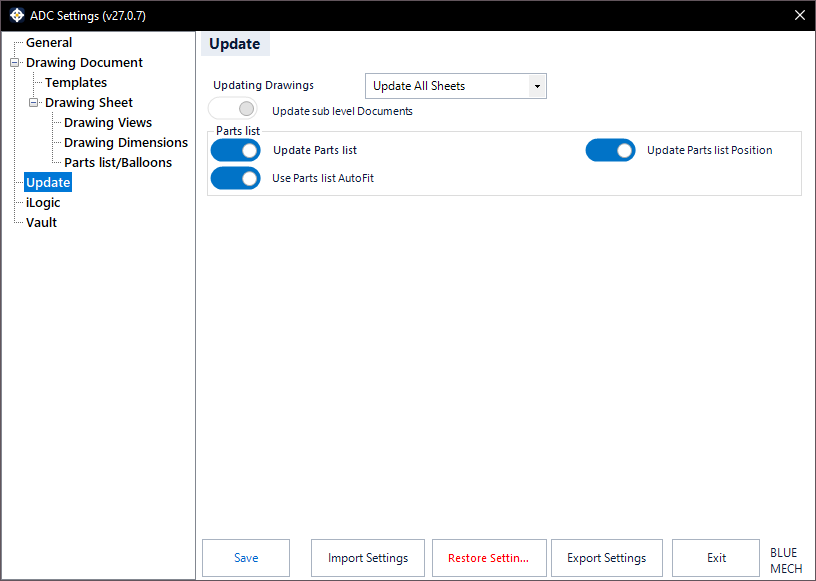

Keep existing drawings in sync — update sheets, parts lists and their positions across your documents.

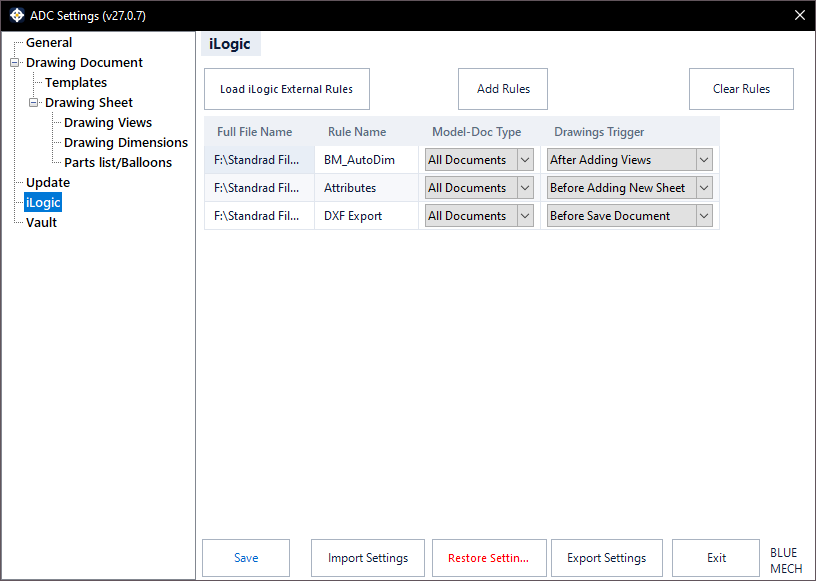

Run your own iLogic rules at chosen points in the drawing-creation process.

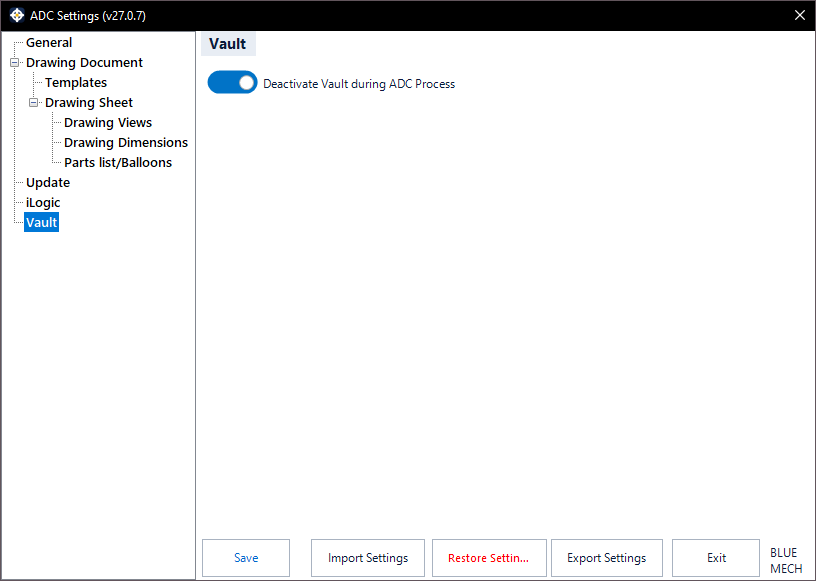

Temporarily pause Vault during the ADC run to avoid check-in/out interference.
