Hello,
I need help configuring ADC / Inventor Single Part drawing templates.
I would like to set up the generated Single Part drawings so that:

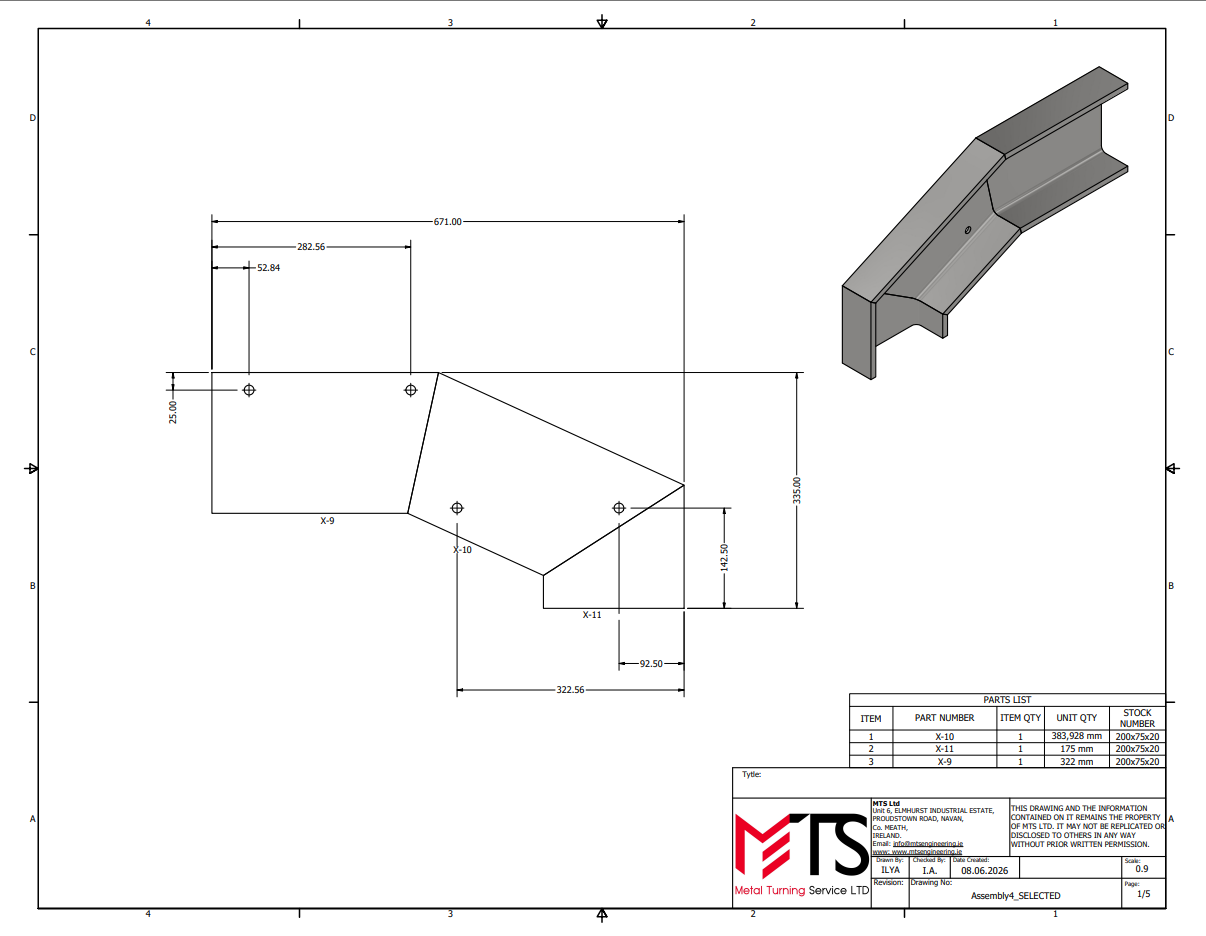

1. My own company title block is used automatically.

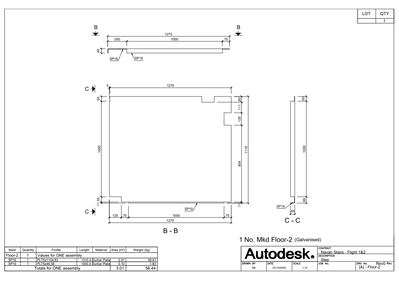

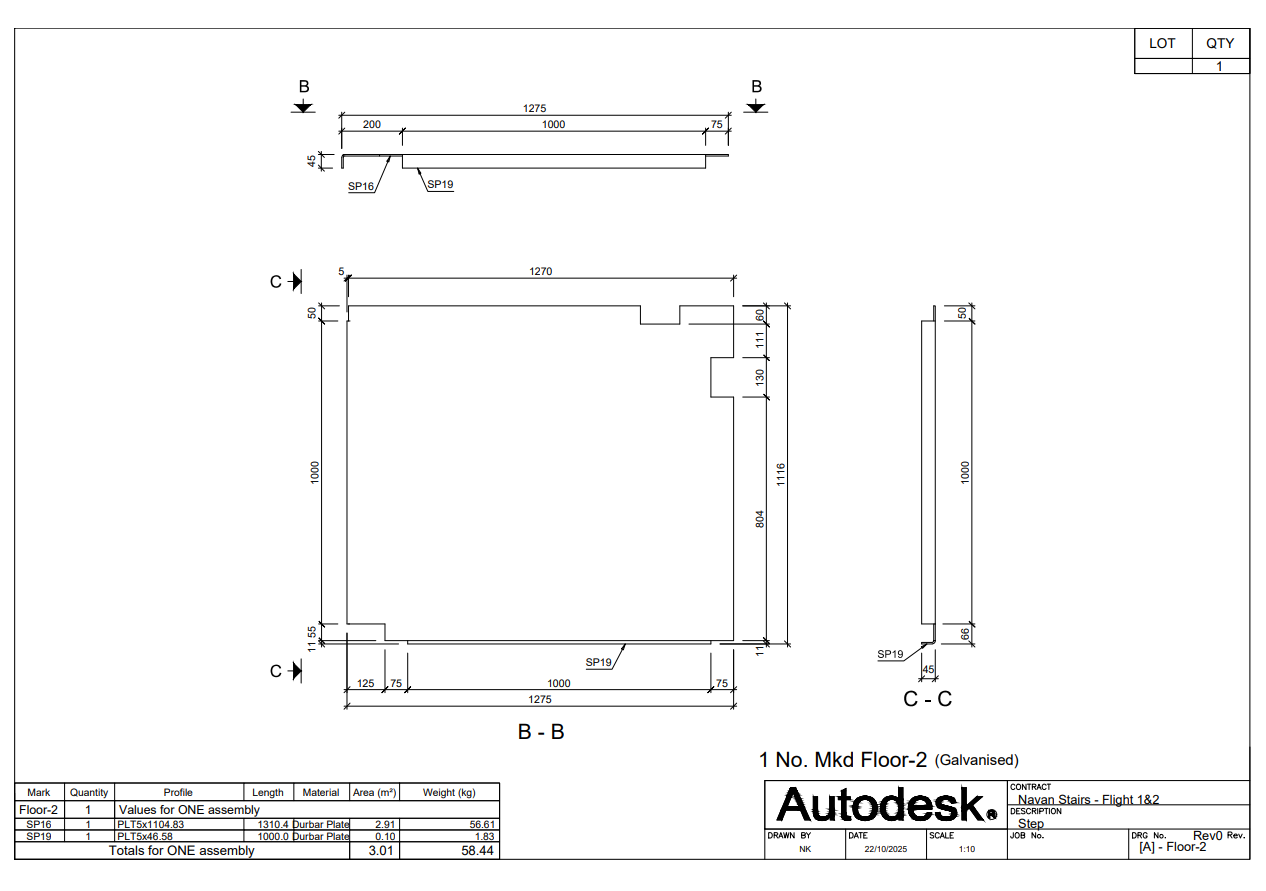

2. Single Part drawings are generated on A4 sheet size.
3. Angular dimensions for frame and structural components are shown as deviation from 90°.
For example:
If the real angle is 135°, I want the drawing to show 45°, because it is 45° from a 90° reference.

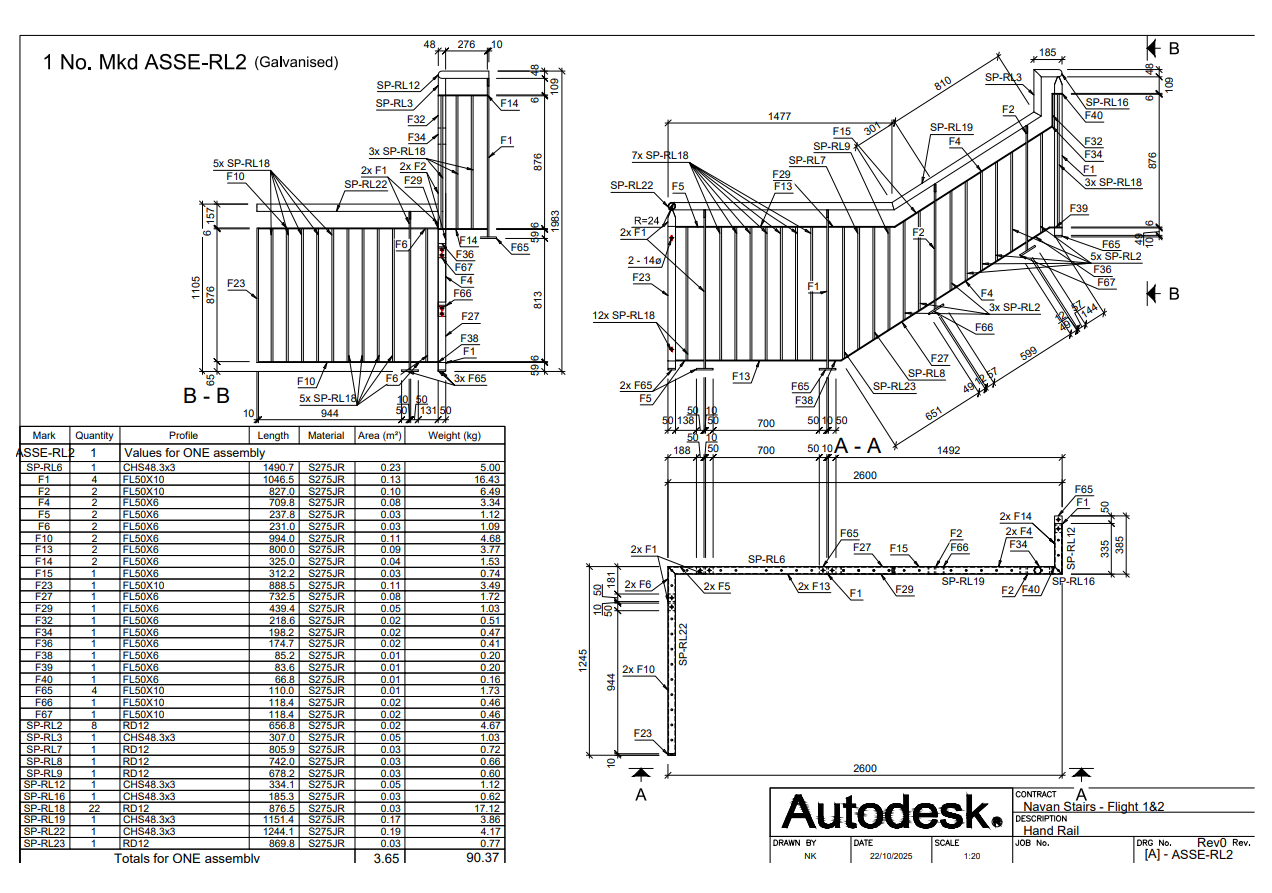

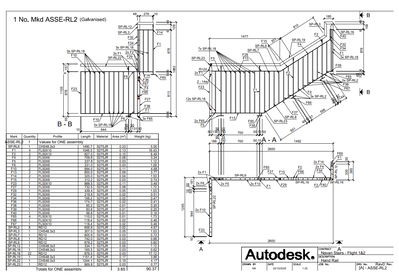

This is needed for frame structures, railings, stair frames, flat bars, angle bars, channels, tubes, pipes and beams — not only sheet metal parts.
Is it possible to configure this in ADC templates, Inventor drawing templates, or dimension styles?
I bought the entire package and would like to understand how to configure everything to suit my needs. I would be grateful if you could create a video tutorial that would showcase the full potential of your software even better.
Thank you.
Hi,
Thank you for your nice post and reaching out, I'll do my best to hep you.
1. To add your own Drawing Tempelate.
Open ADC Settings -> Tempelates Tab and you can add any Tempelates you wish. By Default ADC uses your Project standard dawing.
https://www.youtube.com/watch?v=ofl3kpVtGJU&list=PLu2U7q50hPw1ohgc_WVkJ6AFqmAL6ZTG0&index=2
2. Single Part drawings are generated on A4 sheet size:
->Single Part Drawing can be done by deactivating the option "Add all Sheets in a single Drawing Document" in the Drawing Document Tab.
-> A4: By default ADC defines the sheet based on the minimum scale that you set. But you can set it to use A4 by disabling the option "Use Default sheet settings" from the Drawing sheet Tab. Then you can select A4
3. I think inventor does that automatically and not ADC. but we can chat about that if you would like.
We are currently working on adding much informations for users and they will be avialable soon!
Please feel free to contact us ([email protected]) to help you further.
Thank you!
